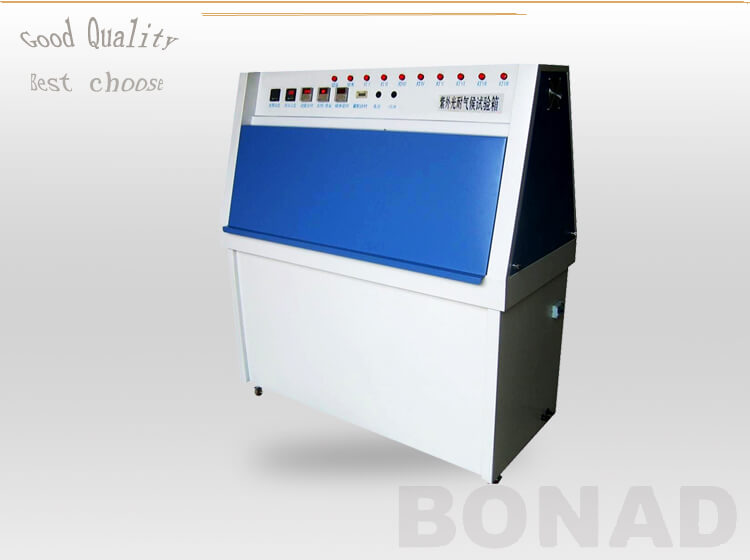

                    UV-resistant climate test chamber BND-HZW

                    This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.The uv weather resistance test chamber can provide reliable aging test data to make the exact prediction of products‘ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
                    Description

                    Product Description:

                    Name:UV-resistant climate test chamber

                    Type:BND-HZW


                    Purpose:

                    This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.The uv weather resistance test chamber can provide reliable aging test data to make the exact prediction of products' weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.


                    Structure:

                    1,The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of A3 steel plate sprayed with plastic.

                    2, The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.

                    Product Spec.and Technical parameter table

                    model

                    BND-HZW-01

                    Stidio size(mm)

                    D

                    450

                    W

                    1170

                    H

                    500

                    Dimensions

                    D

                    660

                    W

                    1330

                    H

                    1130

                    Temperature Range

                    RT+10ºC-70ºC

                    Humidity Range

                    75-98%RH

                    Humidity uniformity

                    ±2%

                    Temperature uniformity

                    ±2ºC

                    Temperature fluctuation

                    ±0.5ºC

                    Standard dimension of sample

                    75*150mm or 75*300mm

                    water tank depth

                    25mm,automation

                    Effective radiation area

                    900*210mm

                    UV Wavelength

                    UV-A: 315-400nm/ UV-B: 280-3150nm/UV-C:< 280

                    Test time

                    0-999H adjustable

                    Outer /Inner material of box

                    SUS304

                    Black Panel Temp

                    40ºC-65ºC

                    power supply

                    380V

                    Power Output

                    4KW

                    Standard Configuration

                    A roll of wet bulb gauze,Three insurance,16th Lamp. one radiometer

                    Standards Applied

                    ASTM D4329.D499.D4587.D5208.G154.G53.ISO4892-3.ISO11507.EN534.prEN1062-4.BS2782.JIS D0205.SAE J2020
