                    Soil PH Sensor BND-PH10


                     PH10 soil pH (PH value) sensor, to solve the traditional soil PH to be equipped with professional display instruments, cumbersome calibration, integration difficult, power consumption, expensive, carrying difficulties and other shortcomings. Can be widely applied to agricultural irrigation, flower and horticulture, meadow pastures, soil testing, plant culture, scientific experiments and other fields. PH10 low power consumption, for long-term uninterrupted monitoring. The sensor has the following features:










                    Description



                    Product Description：
                    Name：Soil PH Sensor
                    Type：BND-PH10
                    PH10 soil pH (PH value) sensor, to solve the traditional soil PH to be
equipped with professional display instruments, cumbersome calibration,
integration difficult, power consumption, expensive, carrying difficulties and
other shortcomings. Can be widely applied to agricultural irrigation, flower and
horticulture, meadow pastures, soil testing, plant culture, scientific
experiments and other fields. PH10 low power consumption, for long-term
uninterrupted monitoring. The sensor has the following features:

                    · New soil pH sensor for online real-time monitoring of soil pH.
                    Adopt international advanced solid dielectrics and large areas of PTFE liquid
junction, easy to plug, maintenance-free.
                    · Waterproof seal, high integration, small size, low power consumption, easy
to carry, outdoor use.
                    High precision, fast response, good interchangeability and reliable
performance.
                    Complete protection circuit and a variety of signal output interface
optional.

                    Technical parameters
                    Signal output type
                    Voltage output 0-2V
                    (Output impedance of about 0 Ohm)
                    Current output 4-20mA
                    (Load resistance <500ohm)
                    RS485 interface
                    Modbus protocol
                    Supply voltage
                    3.6-30V/DC
                    12-30V/DC
                    3.6-30V/DC
                    Static power
                    6mA@24V DC
                    30mA@24V DC
                    (Current output channel is20mA)
                    6mA@24V DC
                    PH value range
                    Range: 0-14PH, resolution: 0.01PH, accuracy ± 0.1PH
                    Temperature range
                    Range: -40 ~ 80 ℃, resolution: 0.1 ℃, accuracy: ± 0.5 ℃
                    Degree of protection
                    IP65
                    Operating environment
                    -40~85℃
                    Default cable length
                    PH probe cable 5 m
                    Transmitter cable 2 m
                    Cable length can be customized
                    Dimensions

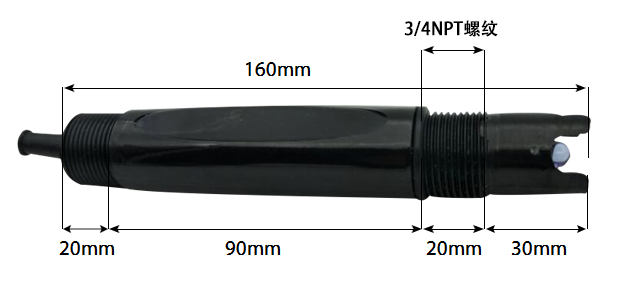

                    PH sensor - probe part size: length 160mm, diameter 30mm
                    PH sensor - probe part size: length 116mm, diameter 30mm

                    PH sensor -the size of the Transmitted
                    Select the order
                    Code No.
                    code
                    Explanation
                    Code1：MODEL
                    PH10
                    PH10 PH soil sensor
                    Code 2：
                    Supply voltage
                    A
                    B
                    3.9-30V DC
                    3.3-16V DC
                    Code 3：
                    output signal
                    A
                    B
                    C
                    D
                    E
                    F
                    G
                    Voltage output 0-2V
                    Current output 4-20mA
                    RS485 interface, Modbus protocol
                    RS485 interface, Modbus protocol & voltage 0-2V output
                    RS485 interface, Modbus protocol & current 4-20mA output
                    SDI-12 interface
                    customize
                    Code 4：
                    Cable length
                    002
                    XXX
                    PH sensor cable 5 meters, transmitter cable 2 meters
                    PH sensor cable 5 meters, custom transmitter cable, XXX for any line length (unit: m)
                    Model example:
                    PH10 soil PH sensor, 3.9-30V DC, RS485 interface, Modbus protocol, PH sensor cable 5 m, transmitter cable 2 m. The selection code is: PH10 - A C 002
