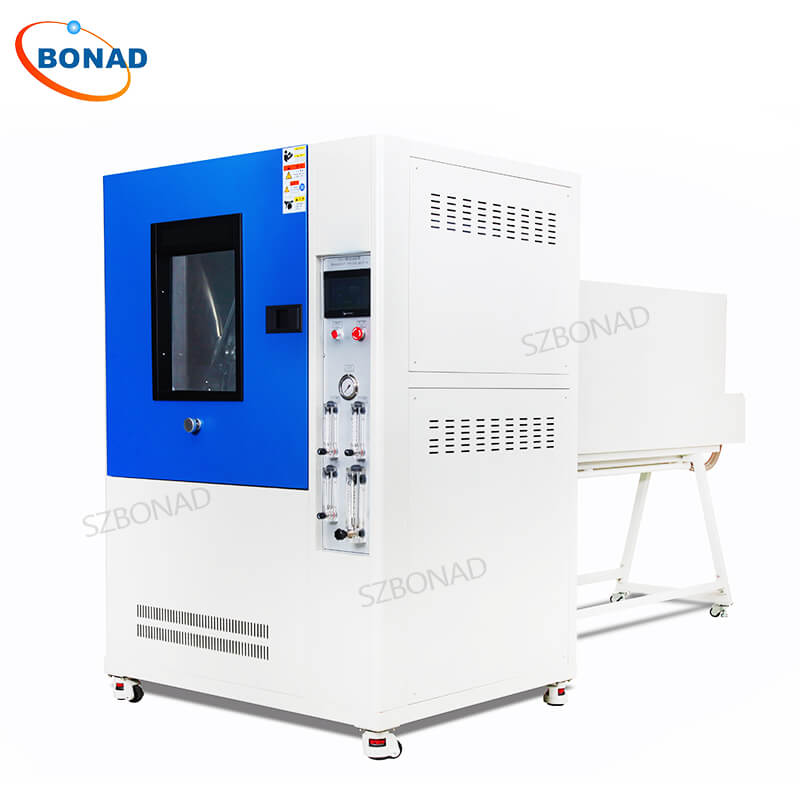

IPX1 to IPX6 integrated waterproof test equipment
Type：BND-IPX1-6BS-R400
In order to assess the impact of various electrical and electronic products (including lamps, electrical cabinets, electrical components, etc.) during dripping, dripping, splashing, flushing, water immersion, etc., according to international standards IEC60529 and IEC60598, etc. The relevant regulations require that electrical and electronic products be placed in various types of waterproof test equipment (divided according to the degree of protection of the enclosure) for simulation tests.
The drip test (IPX12) is a drip test applied to the test of the second feature of the enclosure protection level of 1, 2.
The rain test (IPX34) is a test for water spray and splash test, which should be applied when the second characteristic number of the enclosure protection level is 3, 4.
The jet water test (IPX56) is a simulated large-flow flush test, which should be used when the second characteristic number of the enclosure protection level is 5, 6.
Model | BND-IPX1-6BS-R400 |
Control System | (Touch type) 7" touch screen + Panasonic PLC |
Inner box size (mm) | Width 900 × depth 900 × height 1050 |
outside size (mm) | Approx. L 1350* D 3400* H 1750 mm |
IPX1-2 technical parameters | |
Drip area | 600*600mm |
IPX1/2 Water spray aperture diameter (mm) | 0.4mm |
Water Spray aperture space | 20*20mm |
rainfall | IPX1=1mm/min；IPX2=3mm/min |
Drip plate lifting | fixed |
IPX3-4 technical parameters | |
Swing tube radius (mm) | R400(R200 can be optional) |
R400 Pipe flow (L/mm) | IPX3=1.1L/min；IPX4=1.8L/min |
Water spray aperture diameter (mm) | 0.4 |
Water spray aperture space (mm) | 50 |
Swing tube inner diameter (mm) | 15 |
Swing tube angle | IPX3=±120°,IPX4=±350°,or setting |
Swing tube speed | 240° 4S、720°12S (precise control) |
Flow control method | Manually adjust flow with adjustable panel flow meter |
IPX5-6 technical parameters | |
IPX5 water spray aperture (mm) | 6.3 |
IPX6 water spray aperture (mm) | 12.5 |
IPX5 water spray flow rate (L/min) | 12.5±0.625 |
IPX6 water spray flow rate (L/min) | 100±5L/min |
Water pressure (Mpa) | Regulated water flow regulation |
Water spray distance | 2.5 meters |
Spray gun swing | Swing up and down (angle, speed adjustable) |
Flow control method | Manually adjust flow with adjustable panel flow meter |
Turntable technical parameters | |
Sample turntable diameter (mm) | ∮400(can add ∮200 additional) |
Sample turntable speed | 1-5r/min (accurately adjustable) |
Adjustable Lean | 0° or 15°( horizontal direction) |
Test turret height adjustable range | 400mm-750mm |
Rotate working type | Forward/ Reversal/ forward-reversal |
Electric technical parameters | |
Power supply (V) | AC380V±10% ；50Hz±10% ；3 Phase 4 wires |
Sample plug power supply | 220v |
Power (KW) | 3.0KW |
Standards compliant | IEC60529:1989+A1:1999、GB4208-2008、GB7000.1（IPX3、IPX4、IPX5、IPX6) |
protective device | Leakage, water cut, short circuit |
