Multi-Functional Temperature Humidity Vibration Three integrated chamber

Product Description：Name：Multi-Functional Temperature Humidity Vibration Three integrated chamberType：BND-WSZPurpose:This product are compositive chamber of temperature,humidity and Vibration.It mainly for space flight and aviation,petrochemical engineering,electron,communication,research and other organization to provided changing environment of temperature and humidity,and put electric vibration stress to the sample at the meantime.

Product Description：

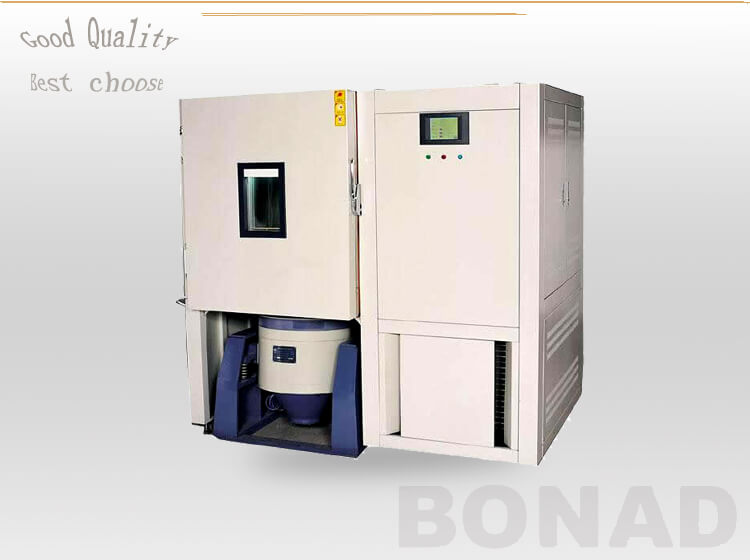

Name：Multi-Functional Temperature Humidity Vibration Three integrated chamber

Type：BND-WSZ

Purpose:

This product are compositive chamber of temperature,humidity and Vibration.It mainly for space flight and aviation,petrochemical engineering,electron,communication,research and other organization to provided changing environment of temperature and humidity,and put electric vibration stress to the sample at the meantime.

Product Spec.and Technical parameter table
model		BND-WSZ61	BND-WSZ62	BND-WSZ63
performance	temperature range	﹣70ºC～﹢150ºC
	temperature fluctuation	±0.5ºC
	temperature uniformity	≤2ºC
	temperature deviation	±2ºC
	rising and cooling rates of temperature	rates range:3ºC/min～15ºC/min(average:﹣55ºC～﹢80ºC)
	humidity range	20～98%RH
	humidity deviation	﹣3～﹢2%R.H.(＞75%R.H.),±5%(＜75%R.H.)
construction	shell	cooling steel plate,surface spray
	Inner	steel plate
	insulate	Rigid Polyurethane Foam
Cooling System	mode	cascade refrigerating compressor
	compressor	Germany The GULUN Semi-closed compressor
inspection window(mm)		400×500
Cable port(mm)		Both sideΦ100
Controller		color LCD touchscreen display
recording equipment		temperature recorder(optional)
communication Interface		RS485 interface,RS232 interface,The software of Upper computer (optional)
Inner dimension(mm)	D	700	900	1250
	W	800	1150	1150
	H	900	1100	1100
Electromotor cover height（mm）		235
Power Supply		AC380V 50Hz Three-phase four-wire + protective earth wire
Standard Configuration		A copy of the instruction and test report for the product, A certificate and quality assurance.2 Shelf and 4 shelves .
Remark:The outter dimension desigh by rising and cooling rates of temperature ;2,water-cooling(water temperature 10-28℃,hydraulic pressure 0.1-0.3MPa,to ensure the cooling performance);3,vertical/horizontal vibrating table(optional)
