Product Description：

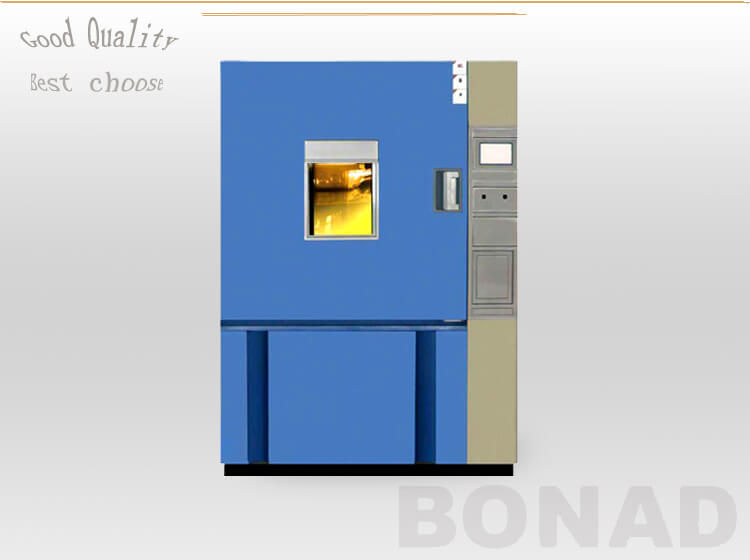

Name：Climatic Xenon Test Chamber
Type：BND-HXD
Purpose:
SN xenon lamp test chamber adopts the xenon arc lamp that can simulate full sunlight spectrum to reproduce destructive light waves existing in different environments so as to provide the corresponding environment simulation and acceleration test for scientific research,product development and quality control.
Chamber Structure:
The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of A3 steel plate sprayed with plastic.Adopts the full spectrum xenon lamp with the functions of temperature and humidity, illumination,spray and condensation.Temperature controller:Imported microprocessor temperature and humidity integrated controller
Product Spec.and Technical parameter table | |||
model | BND-HXD | ||
Standards Applied | Q/CS01-92.ASTM | ||
performance | Workroom Dimensions | 1020×950×1020mm(D×W×H) | |
Temperature Range | 25-70ºC | ||
Temperature fluctuation | ±0.5 | ||
temperature deviation | ≤±2ºC | ||
Humidity Range | 30%RH-98%RH | ||
Spectrum Wavelength | 300nm-1050nm, ultraviolet and ultrared rays for choose | ||
Lighting intensity | 1100W/㎡ | ||
Irradiation distance | 375mm | ||
lighting supply | 3KW Xenon (cooling air ) | ||
total power | 15KW | ||
sample holder | 9 side rotating frame | ||
The test of Temperature and humidity | Constant or procedure | ||
others | raining time：0-9999；raining cycle:0-24min | ||
controller | emperature and humidity integrated controlle,color touch screen of the Chinese language ;The light energy of automatic measuring-controlling instrument | ||
