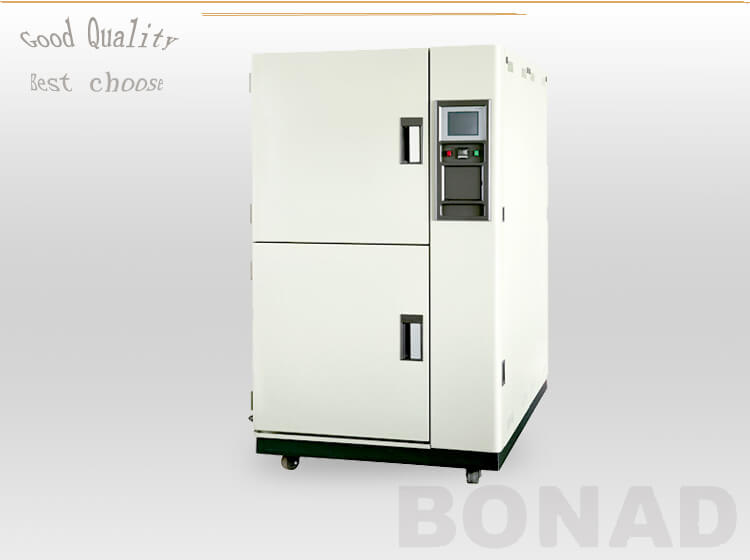

Basket-type two box type Therrmal Shock Test Chambers

Product Description：Name：Basket-type two box type Therrmal Shock Test ChambersType：BND-HLR2Purpose:It is necessary test equipment for the aerospace, automotive, home appliances, research and other fields, used for examination and identification of parameters, performance and the use of adaptive of electrical, electronics, automotive electronics, materials and other products, after making high and low temperature impact test. Applied to schools, factories, military, research, and other organizations

Product Description：

Name：Basket-type two box type Therrmal Shock Test Chambers

Type：BND-HLR2

Purpose:

It is necessary test equipment for the aerospace, automotive, home appliances, research and other fields, used for examination and identification of parameters, performance and the use of adaptive of electrical, electronics, automotive electronics, materials and other products, after making high and low temperature impact test. Applied to schools, factories, military, research, and other organizations

Product Spec.and Technical parameter table
model	BND-HLR2-80			BND-HLR2-100		BND-HLR2-150
performance	heating room			Temperature exposure range		﹢60～﹢200ºC
				The limit of preheating range		200ºC
				heating time		﹢20～﹢200℃≈40min
	cold room			Temperature exposure range		0～﹣65ºC
				The limit of preheating range		﹣75ºC
				cooling time		﹢20ºC～﹣70ºC≈60min
	Basket			temperature range		﹣65ºC～150ºC
				temperature fluctuation		≤0.5ºC
				temperature deviation		≤±2ºC
	switching time			≤10S
	time of recovery temperature			≤5min
construction	shell			cooling steel plate,surface spray
	inner			steel plate
	insulate			Rigid Polyurethane Foam+extra-fine glass-wool
refrigeration	mode			cascade refrigerating compressor
	compressor			import compressor
heater		nickel chromium heating wire
blower		centrifugal blower
temperature sensor		Pt-resistance Pt100
Controller		PLC controller,color LCD touchscreen display
recording equipment		temperature recorder(optional)
communication Interface		RS485 interface,RS232 interface,The software of Upper computer (optional)
Basket dimension（mm）		D	400		400	500
		W	500		500	600
		H	400		500	500
Exterior dimension（mm）		D	2500		2700	2900
		W	1000		1000	1130
		H	1950		2000	2100
Installed power(KW)			19		32	40
Standard Configuration		A copy of the instruction and test report for the product, A certificate and quality assurance,two layers of basket with truckles.
Power Supply		AC380V 50Hz Three-phase four-wire + protective earth wire
The implementation of standards		GJB150.5
Remark:1,The hanging touch screen(240mm) has not including in the width of exterior dimension;2,water-cooled(water temperature 10-28ºC,hydraulic pressure 0.1-0.3MPa,to ensure the cooling performance)
