Product Description：

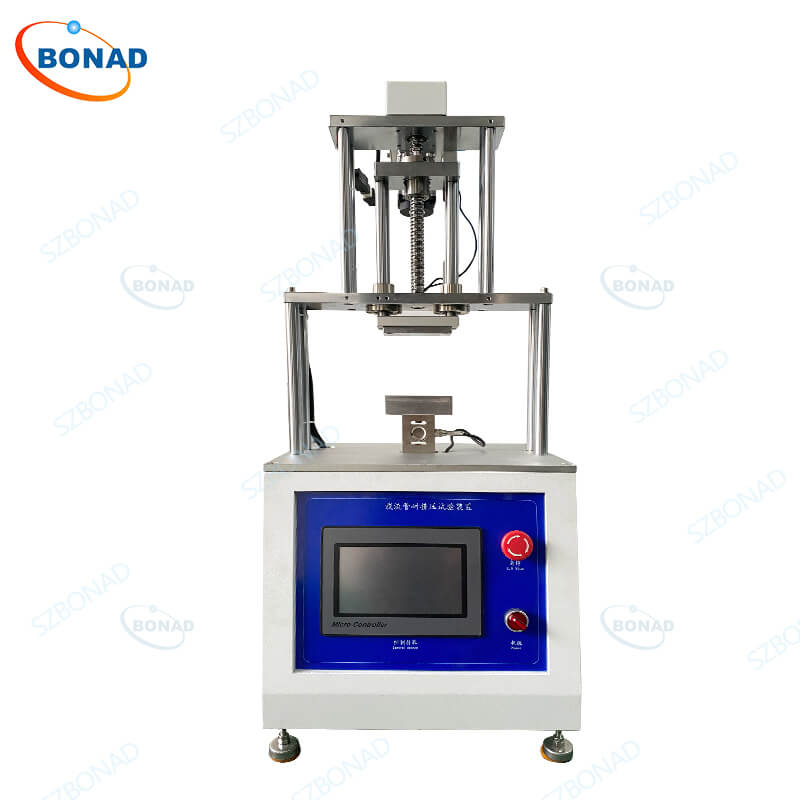

Name：IEC 60335-2-2- Clause 21.101 Current-Carrying Hoses Crushing Resistance Test Apparatus
Type：BND-EA004
Test Procudures (Extracted from IEC 60035-2-2:2019 clause 21.101):
The hose is placed between two aprallel steel plates each having a length of 100mm, a width of 50mm and the edges of the longer sides rounded with a radius of 1mm. The axis of the hose is positioned at right angles to the longer sides of the plates. The plates are placed at a distance of approximately 350mm from one end of the hose.
The steel plates are pressed together at a rate of 50mm/min± 5mm/mim until the applied force is 1.5kN. The force is them re;leased and the electric strength test is carried out between the conductors connected together and the saline solution.
Standards:
Our tester complies with several international standards:
IEC 60335-2-2 clause 21.101
IEC 62368-1:2018 clause 4.8.4.6
IEC60065:2014 clause 12.7.3.6
Main Technical Parameters:
| Feature | Description |
|---|---|
| Control Mode | PLC control with a touch screen human-machine interface for intelligent operation. |
| Test Station | Single station setup. |
| Frame Structure | Constructed from electrophoretic aluminum alloy with a sprayed steel plate seal, featuring an upper and lower structure where the lower part houses the control components and the upper part serves as a gantry test operating table. |
| Tester Drive | Equipped with a servo reduction motor. |
| Extrusion Pressure | Maximum pressure capacity of 1.5KN. |
| Pressurization Speed | Adjustable speed of 50±5mm/min. |
| Platen Specifications | Made from steel with dimensions of length 100mm, width 50mm, and fillet radius R1mm. |
| Force Value Accuracy | Uses an S-type force value sensor with an accuracy of ±1%. |
| Equipment Power Supply | AC220V 50Hz. |
Features:
1. Precision Measurement: Utilizes a precision digital pressure sensor for accurate and intuitive pressure measurement.
2. Compact Design: Features a small desktop structure that occupies minimal space and can be conveniently placed on a test workbench.
3. Stable Operation: Incorporates a servo reduction motor and PLC touch screen control for stable and reliable operation.
